Audio Dual Stereo Amplifier Chip Class D 100W TDA7498 POWERSSO36

Product Categories

Sanhuang electronics (Hong Kong) Co., Limited

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Brand Name : ST

Model Number : TDA7498

MOQ : 1

Price : Based on the price of the day

Payment Terms : T/T

Delivery Time : 5-8 work days

Supply Ability : In stock

Output Type : 2-Channel (Stereo)

Max Output Power x Channels @ Load : 100W x 2 @ 6Ohm

Voltage - Supply : 14V ~ 39V

Features : Differential Inputs, Mute, Short-Circuit and Thermal Protection, Standby

Package / Case : 36-PowerFSOP (0.295", 7.50mm Width)

Operating Temperature : -40°C ~ 85°C (TA)

Contact Now

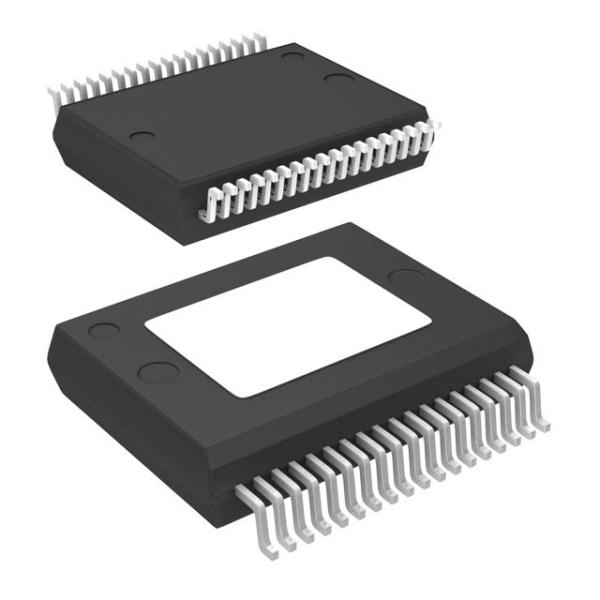

TDA7498 dual BTL Class-D audio amplifier POWERSSO36

Description: IC AMP D STEREO 100W POWERSSO36

Detailed Description: Amplifier IC 2-Channel (Stereo) Class D PowerSSO-36 EPU

TYPE	DESCRIPTION
Mfr	ST
Series	-
Package	Tube
Type	Class D
Output Type	2-Channel (Stereo)
Max Output Power x Channels @ Load	100W x 2 @ 6Ohm
Voltage - Supply	14V ~ 39V
Features	Differential Inputs, Mute, Short-Circuit and Thermal Protection, Standby
Mounting Type	Surface Mount
Operating Temperature	-40°C ~ 85°C (TA)
Supplier Device Package	PowerSSO-36 EPU
Package / Case	36-PowerFSOP (0.295", 7.50mm Width)
Base Product Number	TDA7498

The TDA7498 is a dual BTL class-D audio amplifier with single power supply designed for home systems and active speaker applications.

It comes in a 36-pin PowerSSO package with exposed pad up (EPU) to facilitate mounting a separate heatsink.

100 W + 100 W output power at THD = 10% with RL = 6 Ω and VCC = 36 V
80 W + 80 W output power at THD = 10% with RL = 8 Ω and VCC = 34 V
Wide-range single-supply operation (14 - 39 V)
High efficiency (η = 90%)
Four selectable, fixed gain settings of nominally 25.6 dB, 31.6 dB, 35.1 dB and 37.6 dB
Differential inputs minimize common-mode noise
Standby and mute features
Short-circuit protection
Thermal overload protection
Externally synchronizable
